Automatic Pineapple Cleaning Washing Processing Machine Supplier

Bubble cleaning machine; low energy consumption, large output; strong corrosion resistance.

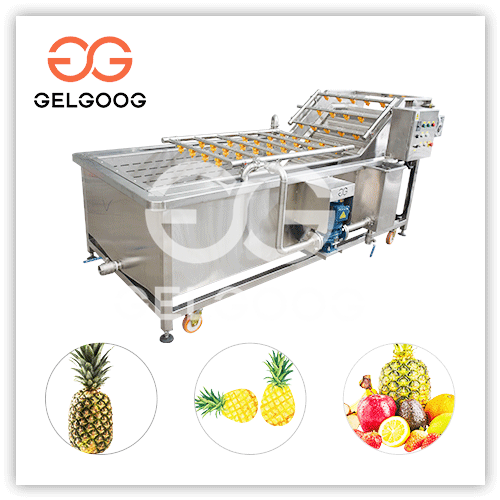

Pineapple Cleaning Machine Introduction

We have an excellent production team of pineapple washing machines, focusing on the production of pineapple washing machines for more than ten years. The designed pineapple cleaning machine utilizes the impact of high-pressure water flow and bubble generating device to clean the surface of the pineapple. Pineapple processing machine makes the pineapple in a tumbling state during the cleaning process to achieve the effect of removing sediment and dust. Pineapple washing machine is suitable for cleaning various fruits, vegetables, aquatic products and medicinal materials, and can be customized according to the output.

Features Of Pineapple Cleaning Machine

1. The rack is made of national standard food-grade stainless steel, which is strong and durable and will not damage the raw materials of the equipment, thereby achieving high cleanliness, labor saving, water saving, and stable and reliable equipment performance.

2. Users can adjust the mechanical mesh belt speed arbitrarily according to the requirements of the production process so that the materials can be fully cleaned.

3. Using a water circulation system can save water, electricity and time.

4. No damage to vegetables, high efficiency, small footprint, safe and reliable.

5. Easy to install, easy to operate, easy to maintain, and low energy consumption.

6. The conveying part adopts SUS304 stainless steel mesh belt, which has the characteristics of stable operation and long service life, and meets food hygiene requirements.



Advantages Of Pineapple Washing Machine

1. The pineapple cleaning machine is manufactured with a high-power vortex air pump, which makes the cleaning efficiency high and the cleaning effect good.

2. Adopt overall water circulation and install an independent filter sub-box to effectively remove floating debris.

3. It can be used in production lines and can be customized according to the different processing characteristics of each user to meet the process requirements to the greatest extent.

4. The running speed is adjustable, and users can set it according to different cleaning intensities.

5. With compact structure and high degree of automation, it is suitable for enterprises of various processing scales.


Pineapple Washing Machine Operation Steps

1.First check whether all parts of the pineapple washing machine is in good condition. After the inspection, open the water inlet valve to make the water reach the return level when it arrives. Close the small valve, open the blast, circulating water pump, and conveyor belt. Pour the pineapple on the sieve plate, adjust the pressure of the circulating water pump according to the processing requirements of the pineapple to ensure the residence time of the pineapple in the water, so as to ensure that the material is cleaned more thoroughly. Adjust the conveyor belt speed so that the material is sprayed and cleaned again to filter out the water during the conveying process, and the pineapple flows into the frame through the conveyor belt for standby.

2.During use, the filter should be cleaned regularly according to different materials, and the sewage should be cleaned and discharged regularly; the water intake and spray water supply should be adjusted appropriately to make cleaning more water-saving.

Pineapple Cleaning Machine Parameters

Pineapple cleaning machine

Model Mesh belt width Transmission power Pump power Air pump power Dimensions(MM)
GG-XQ2500A 800 0.75 0.75 2.2 2725×1504×1329
GG-XQ3000A 800 0.75 0.75 2.2 3225×1504×1329
GG-XQ3500A 800 0.75 0.75 2.2 3725×1504×1329
GG-XQ4000A 800 0.75 0.75 2.2 4225×1504×1329
GG-XQ5000A 800 1.5 1.5 4 5225×1504×1329
GG-XQ6000A 800 1.5 1.5 4 6225×1504×1329

We are manufacturers and suppliers of Pineapple Processing Machinery. We not only have pineapple cleaning machines, but also pineapple peeling machines, pineapple cutting machines, pineapple drying machines, pineapple sorting machines, etc. and various production lines. If you need them, please contact us.
